CONCEIVED WITH THE ORGANIST IN MIND
Unlike a regular keyboard, the Johannus ONE has been conceived and developed from the perspective of the organist. Specifically, this means that the basis of the instrument is an organ. This is very clear to see from the sixteen tab stops each representing five stops.This means that the ONE has no less than 80 unique stops, which becomes noticeable when you begin to play.

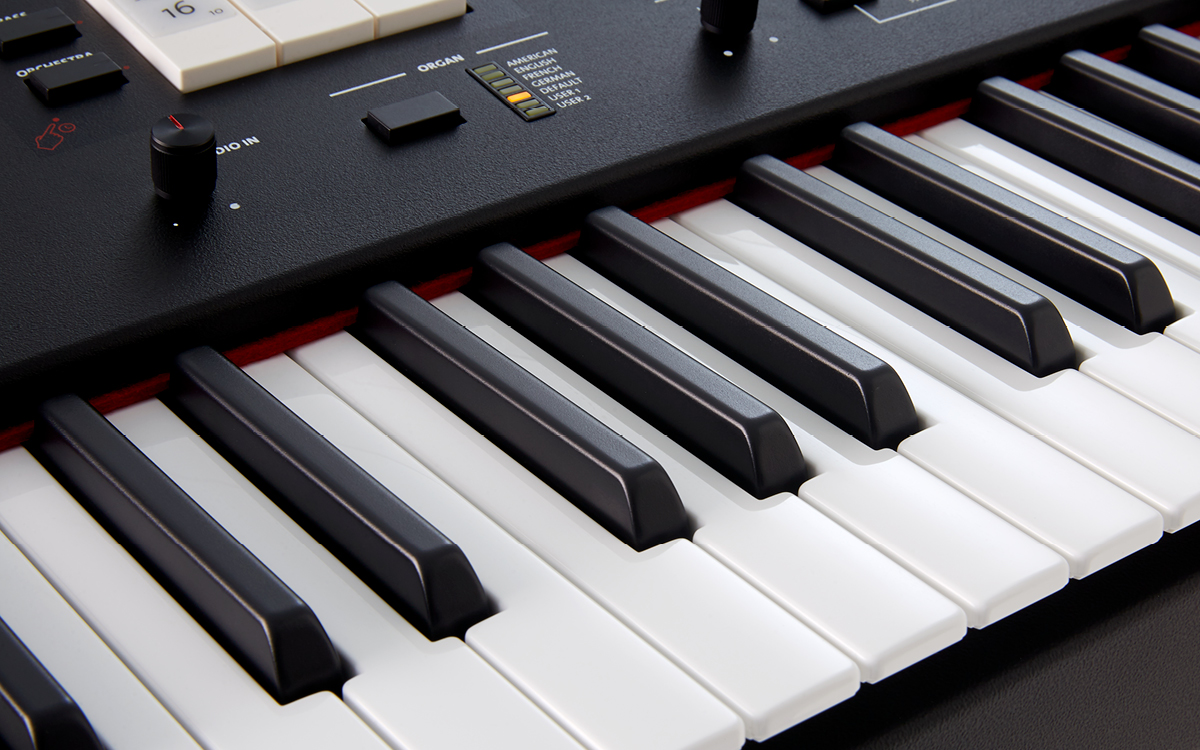

The 76 touch sensitive keys give you the feeling that you’re playing a real organ. It’s audible at the same time too: you aren’t playing a mainstream keyboard, but a real organ with authentic pipe organ sounds. Seven pre-programmed reverbs and an adjustable reverb volume make the experience complete.
SOLO AND ORCHESTRAL STOPS
In addition to the organ stops, the ONE is equipped with a number of quality solo and orchestral stops, including strings, a flute, a violin, a piano, a harp, a harpsichord and a trumpet.
These stops can be used separately or in combination with organ stops.
TWO KEYBOARDS PLUS PEDAL BOARD
The ONE consists physically of a single keyboard, but the manual is easy to divide into two keyboards and a pedal board. This makes the instrument unique: in fact, you’re playing a complete organ.
You play manual 1 to the right of the central C, and manual 2 to the left of the central C.
FIVE STYLES
Above each of the sixteen tab stops are listed the names of four other stops. The stop you register depends on the style you choose: American, English, French, German or the integrated disposition.
So, in the standard disposition, the Viola di Gamba 8’ is a Salicional 8’ in the French style, and a Flute 4’ is a Quint 2 2/3 in the German style.
CREATE YOUR OWN COMPOSITION
Would you like to record your own playing? You can do that with the ONE! With an easily operated recording function, you can listen to your best pieces as often as you like.
It’s also possible to play along with an existing recording. This allows you to buildup your compositionlayer by layer!
Keyboard | 76 Keys with dynamic touch |
Tone generator | T2L: Sampling and Modelling Technology |
Sampling | XXL-Wave size, up to 15 seconds on lower piano notes |
Sound wave format | 24-bit linear - 48 kHz (internal processing and DSP at 32 bit floating) |
Digital analog convertion (DAC) | 24 bit linear - 48 kHz, Dynamic Range, S/N:106dB |
Maximum polyphony | Unlimited with 320 Oscillator |
Organ type | Default, American, English, French and German |
Pedal stops | 3 |
Manual I stops | 6 |
Manual II stops | 7 |
Orchestral voices | 34 |
Memory pistons | 4 x 3 Banks under the keyboard, saveable and loadable by USB |
Keyboard mode | 3 Parts (MANUAL I, MANUAL II, PEDAL) |
Touch sensitivity | 3 Types + Fixed |
Reverb | 7 Types |
Tremulant | 3 Types |
Master equalizer | Tone control |
Master tuning | 7 Historical presets + fine adjustable |
Transposer | + 6, -6 Semitones |
Chord enchancer | YES |
Chord enhancer | Balance Volume Reverb Depth Fine Tuning Audio IN Tone/Level |
Player
MIDI | NO |
Audio | .wav, .aiff, .mp3, in all format, frequency and bit rate |
Recorder
Audio | .wav (48 kHz, 32-bit floating) on USB Memory |
MIDI | NO |
Temperaments | 7 Types |
connectors
Output | OUTPUT Jacks (L/MONO, R) 1/4-inch headphones type |
Headphones | 2: 1 x 1/4-inch-jack, 1 x mini-jack |
Foot 1 | EXPRESSION, Assignable |
Foot 2 | DAMPER/HOLD, Assignable |
Foot 3 | CRESCENDO |
MIDI | IN, OUT, THRU |
USB | TO HOST (MIDI), TO DEVICE (MEMORY) |
AUX IN | 1 jack (stereo mini-jack) |
Bluetooth | YES |
Speakers | 2 Full Range x 8,9 cm (3,5 inches) |
Rated power output | 35 W x 2 max @ THD+N < 0,1% |
Volume level SPL | 108,1 dB max |
DSP on amplifier
Digital Bass Enhancer | YES |
Dynamic EQ | YES |
3 Band Compressor | YES |
Power port | YES |
Power consumption | STAND BY: < 0,2 W MAXIMUM: 11 W |
Dimensions | Width 1116 mm Depth 335 mm Height 130 mm |
Weight | 14 Kg |
• = default
